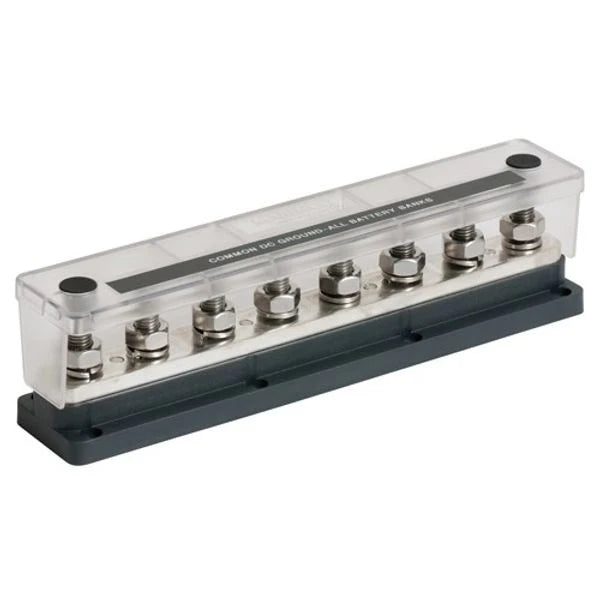

BEP PRO-INSTALLER BUSBAR HD 8 STUD 650A

Available in a broad range from 8-stud 650 Amps to 4-stud 500 Amps, Pro Installer buss bars are designed for flexibility and scalability. The snap-out side skirts allow for additional cable entry, and radius ends improve cable routing options. it is easy to link other Pro Installer products to the buss bars because of the common interconnection height in the product line.

• Compact footprint saves space
• Clear, polycarbonate covers insulate and protect on three sides
• Secure cover attachment does not interfere with cabling
• Snap-out skirts for flexible cable entry
• Radiused ends improve cable routing
• Long, threaded studs to connect up to (4) large cable lugs
• Plated brass nuts and stainless steel studs prevent thread galling during tightening

Pro Installer Heavy Duty Busbars provide a robust means to connect (bus) together the multitude large cables found in modern electrical installations. These offer unrivalled flexibility to meet the requirements of any installation saving significant cost and space.

Specifications:

4 Stud-500A busbar: 8mm (5/16″) stainless steel studs

3 5 and 8 stud-650A busbars: 10mm (3/8″) stainless steel studs

Studs treated with anti-seize lubricant

50 VDC

Tinned CDA102 Copper conductors

Stainless steel studs washers nuts for longevity in the marine environment

Generous stud lengths metric threads
