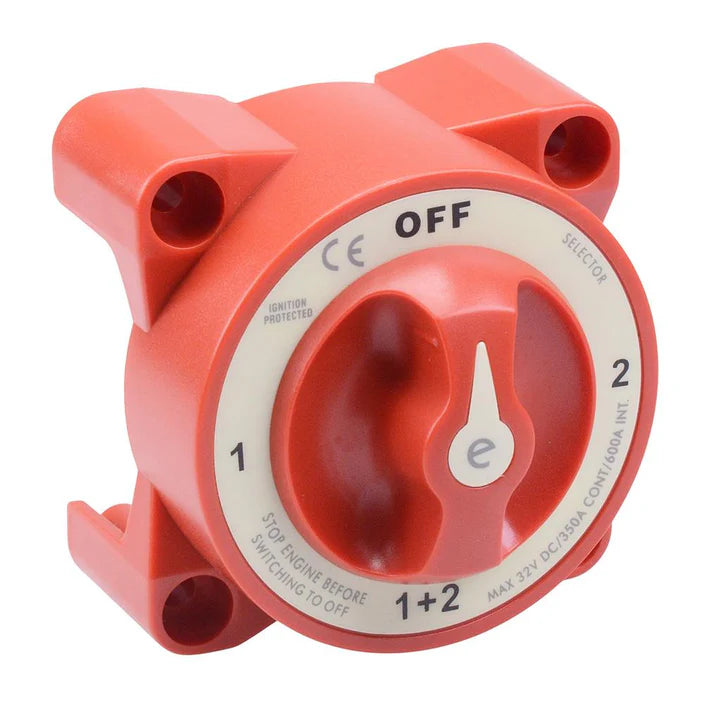

Blue Sea Systems Switch Battery e-Series Selector

Blue Sea Systems Switch Battery e-Series Selector

£46.87 GBP
£46.87 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Description

Switches a single battery to a single load group

  • Includes AFD (Alternator Field Disconnect)
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting



Specifications

Switch Type Selector 3 Position
Switch Positions 3
Battery Combine No
Alternator Field Disconnect Yes
Maximum Voltage 32V DC
Intermittent Rating 600A (5 min)
Cranking Rating 30 sec 1200A
Battery Inputs 2
Mounting Holes Accept 1/4" (M6) Screw
Terminal Stud Size M10
Continuous Rating 350A
Weight 0.52Kg
Warranty 1 Year
