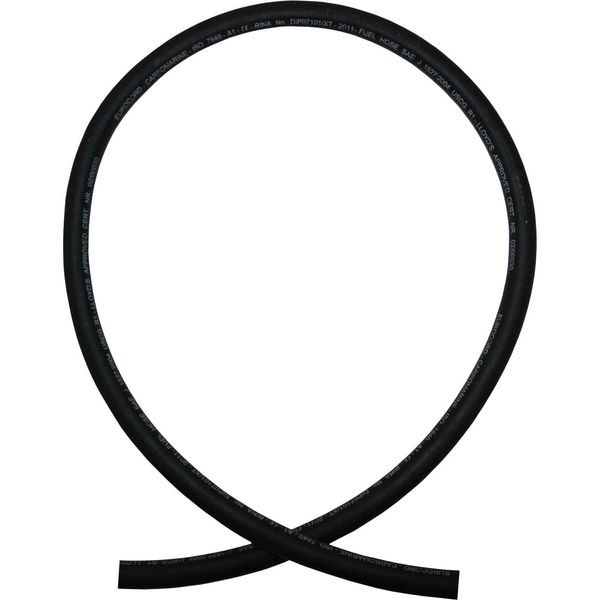

FUEL HOSE 10mmID ISO7840 PERMTR
FUEL HOSE 10mmID ISO7840 PERMTR
Couldn't load pickup availability
Description
Seaflow marine fuel delivery hose suitable for diesel and unleaded fuel, sold per 10 metre coil. This 10mm ID fuel hose can be used in fuel supply and return lines, fuel tank vents and fuel tank filling, as well as other applications that are in fire risk areas. This hose is specifically manufactured to meet ISO 7840 A1 requirements, meaning it is fire resistant for at least 2 minutes. The hose is also approved by Lloyds and the R.I.N.A.
This Seaflow fuel hose features a textile reinforced black, synthetic rubber cover, which is resistant to abrasions, ozone, weather, heat and oil. The inner tube is also a synthetic rubber which encloses up to 60% of fuel odours.
This Seaflow fuel hose is also available with 6mm, 8mm, 10mm, 13mm, 16mm and 19mm inside diameters and is also sold per metre.
Specification
| Material | Textile reinforced synthetic rubber cover with synthetic rubber inner tube. |
| Hose with Spigot Ends | No |
| Unit of Sale | 10 Metres |
| Bending Radius | 100mm |
| Burst Pressure | 203 psi (14 bar) |
| Brand | Seaflow |
| Application | E10 & E5 Fuels |
| Colour | Black |
| Approvals | Rated to ISO7840 A1. Both Lloyds & R.I.N.A Approved. |
| Length | 10 Metre Coil |
| Temperature Range | -35°C to +80°C |
| Diameter Description | 10mm (3/8") ID, 19mm OD |
