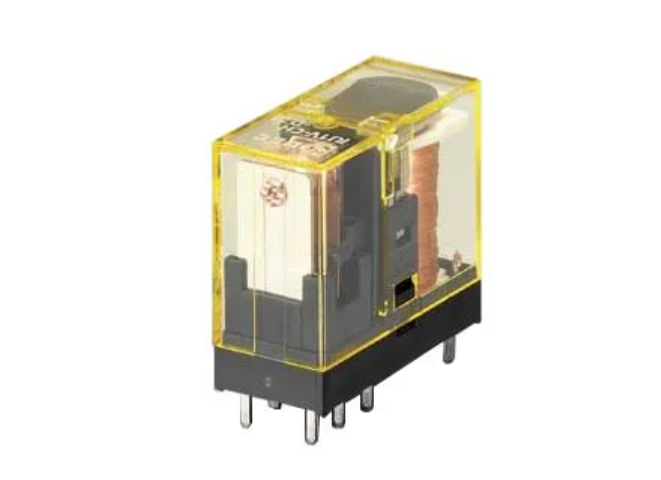

IDEC General Purpose Relay Plu-In SPDT1

IDEC General Purpose Relay Plu-In SPDT1

£8.86 GBP
£8.86 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

IDEC RJ Slim Power Relays

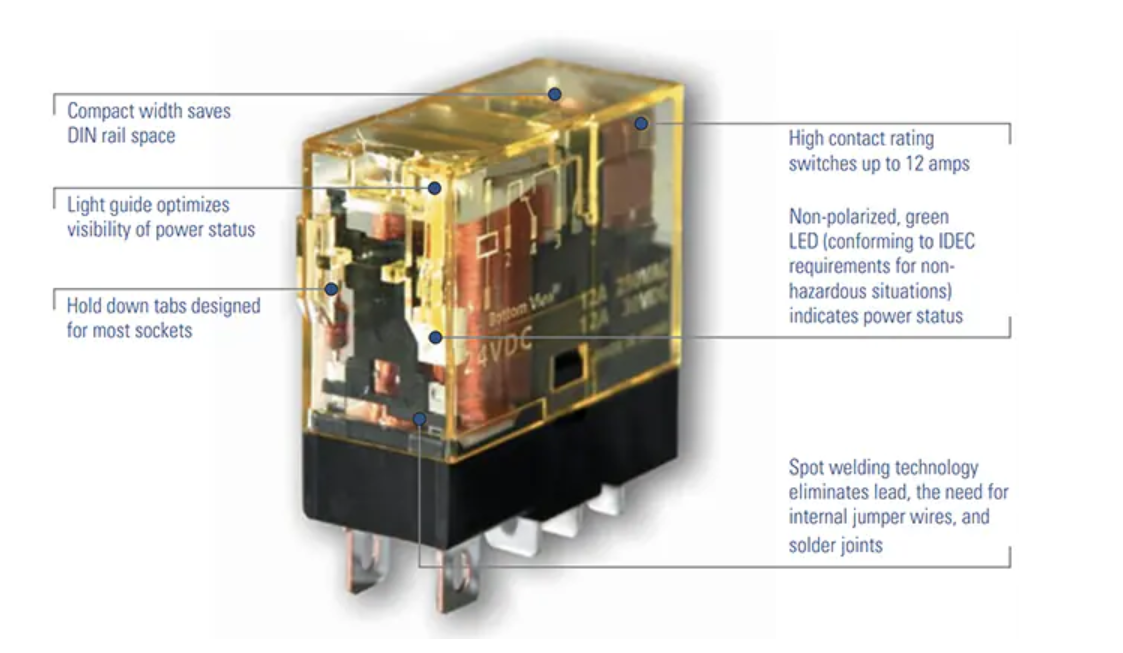

IDEC RJ Slim Power Relays are rugged components with large switching capacities and one or two-pole options in a compact 12.7mm wide housing with either PCB or blade terminals. These long-life relays are available with DDPDT, DPST-NO, SPDT, and SPST-NO contact arrangements. Blade-type terminals feature an optional green, non-polarized LED indicator.

Features

  • Contact ratings
    • Blade type
      • 8A with DPDT
      • 12A with SPDT
    • PCB type
      • 8A with DPDT and DPST-NO
      • 12A with SPDT and SPST-NO
      • 16A with SPDT and SPST-NO
  • One or two-pole options
  • Large switching capacity
  • Compact size
    • 12.7mm x 27mm x 28.8mm for blade style
    • 12.7mm x 25.5mm x 28.8mm for PCB type
  • Operational life
    • 200K cycles at full resistive AC load
    • 50 million cycles at no load
  • Spot welded technology
  • Blade model features an optional green, non-polarized LED
  • RoHS compliant

Specifications

  • Coil voltage ranges
    • 5VDC to 110VDC
    • 12VAC to 240VAC
  • 1A to 16A contact current rating range
  • 47.2Ω to 25.57Ω coil resistance range
  • 3.7mA to 110mA coil current range
  • 50mΩ maximum contact resistance
  • 15ms maximum operating time
  • 10ms maximum release time
  • Mechanical life
    • 30 million cycles AC
    • 50 million cycles DC
  • Electrical life at full rated load
    • 200K operations AC
    • 100K operations DC
  • -40°C to +70°C operating temperature range
  • 5% to 85% relative operating humidity
