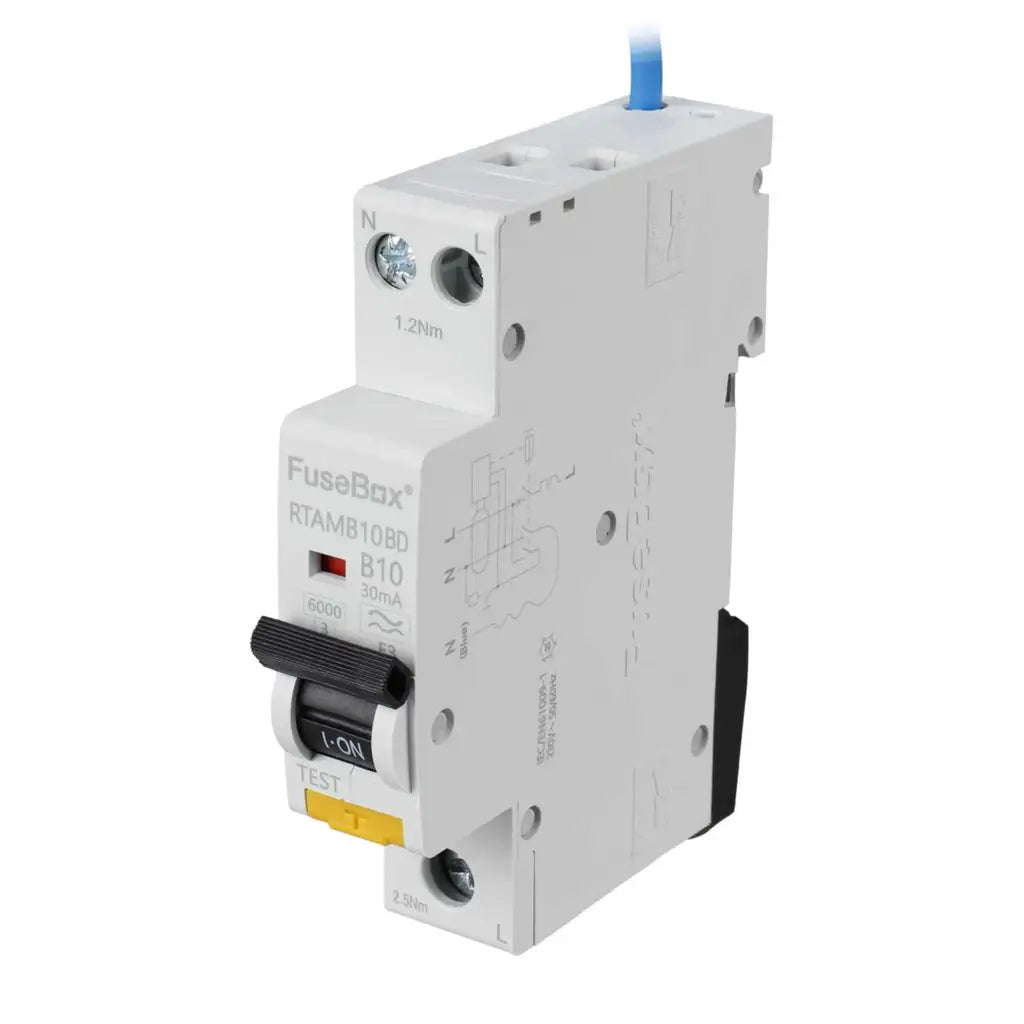

MINI 10A B RCBO 30MA 6KA

MINI 10A B RCBO 30MA 6KA

£34.42 GBP
£34.42 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Bi-directional mini RCBO, used for the protection against overload, short circuit and earth leakage in solar applications or where current flows in both directions
  • Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA
  • Flying Neutral cable can be cut to suit but should be terminated
  • Single pole and neutral switched
Brand Fusebox
Current Rating 10 A
Depth 69.5 mm
Dimensions (H) 85 mm × (W) 18 mm × (D) 69.5 mm
Guarantee 1 Year
Height 85 mm
Incoming Terminal Capacity 16 mm²
Mounting DIN Rail
Number of Modules 1
Number of Poles Single Pole and Neutral
Outgoing Terminal Capacity 10 mm²
Packaging Types Each
RCD Type A
Short Circuit Rating 6 kA
Standards IEC 61009-1, IEC 61009-2-2
Tripping Characteristics B Curve
Tripping Sensitivity 30 mA
UNSPSC V18 39121601
UNSPSC V24 39121601
Voltage Rating 230 V
Weight 0.144 kg
Width 18 mm
