Monocrystalline Solar Panel- 540w Sharp NU-JD

Monocrystalline Solar Panel- 540w Sharp NU-JD

Regular price £350.00 GBP
Regular price Sale price £350.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Do you need canalside delivery? (*N.B. - If Yes enter billing address as your delivery address at checkout)

JSA Marine Services are proud to present this high quality 540W solar panel from leading solar panel manufacturer Sharp, which has over 60 years of experience with solar technology and over 50 million solar panels installed all over the world.

This MCS certified panel is perfect for a wide variety of applications, from grid-tie household systems to off-grid installations where mains power is limited or unavailable such as boats, caravans, campervans, cabins or glamping huts. These high-power panels are ideal for large systems where the time and expense of fitting a high wattage array needs to be minimised.

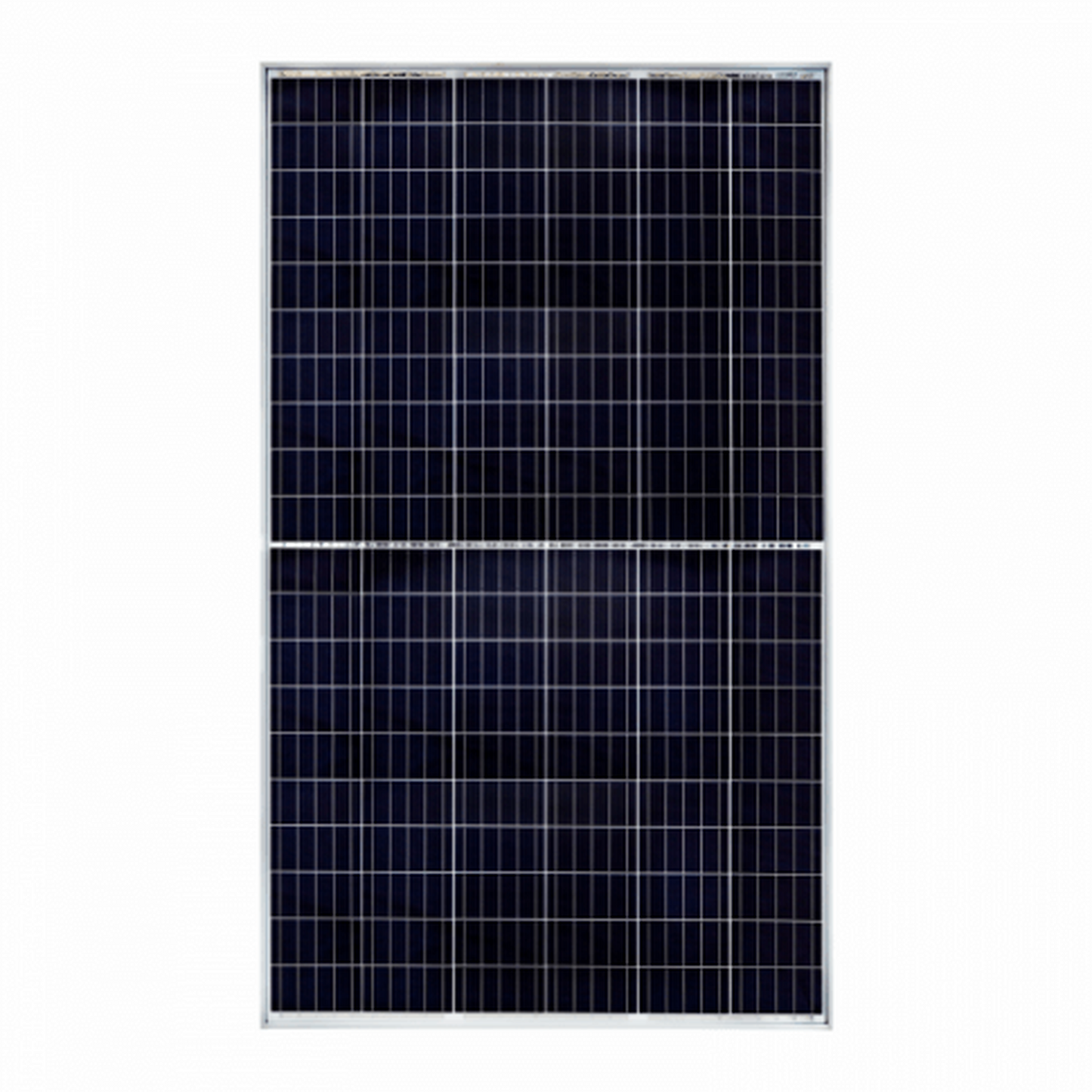

High efficiency solar cells use PERC technology with 10 busbars to extract more power from a smaller surface area, increasing the output of the panel without increasing the size. Half-cut cell construction decreases internal losses, reduces risk of hotspots and improves performance in shaded conditions.

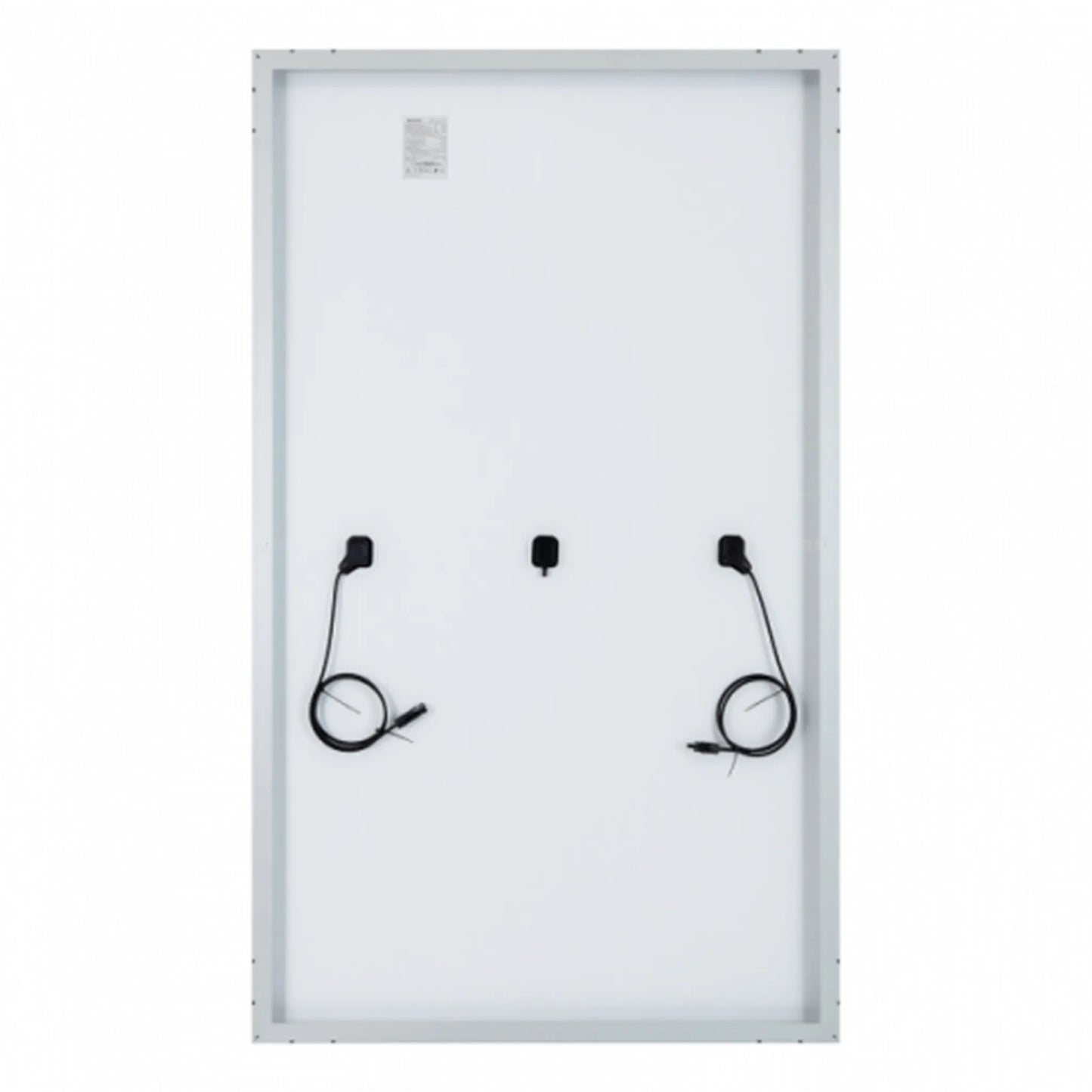

The robust design of the panel is IP68 (waterproof) rated, and tested for resistance against PID, salt mist, ammonia, heavy snow, dust and sand. This thorough testing ensures a long service life even in harsh marine or wilderness conditions. A pair of male / female MC4 connectors are crimped on the end of the cable for easy waterproof connection to other solar panels, extension leads or your existing system.

Specifications

  • Peak power: 540W
  • Maximum power voltage: 41.64V
  • Maximum power current: 12.97A
  • Open circuit voltage: 50.34V
  • Short circuit current: 13.66A
  • Power tolerance: 0/+5%
  • Dimensions: 2279 x 1134 x 35 mm
  • Weight: 27.8 kg
  • Mounting holes for ease of installation
  • 2x 1.75m of high-quality single core solar cable
  • Male and female MC4 waterproof connectors

Warranty and Safety Features

The product is covered by a 15 year workmanship warranty provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least97.5% of nominal power in the first year after purchase and less than0.7% degradation of nominal power each year after until 25 years after purchase, for a minimum of 80.7%.
