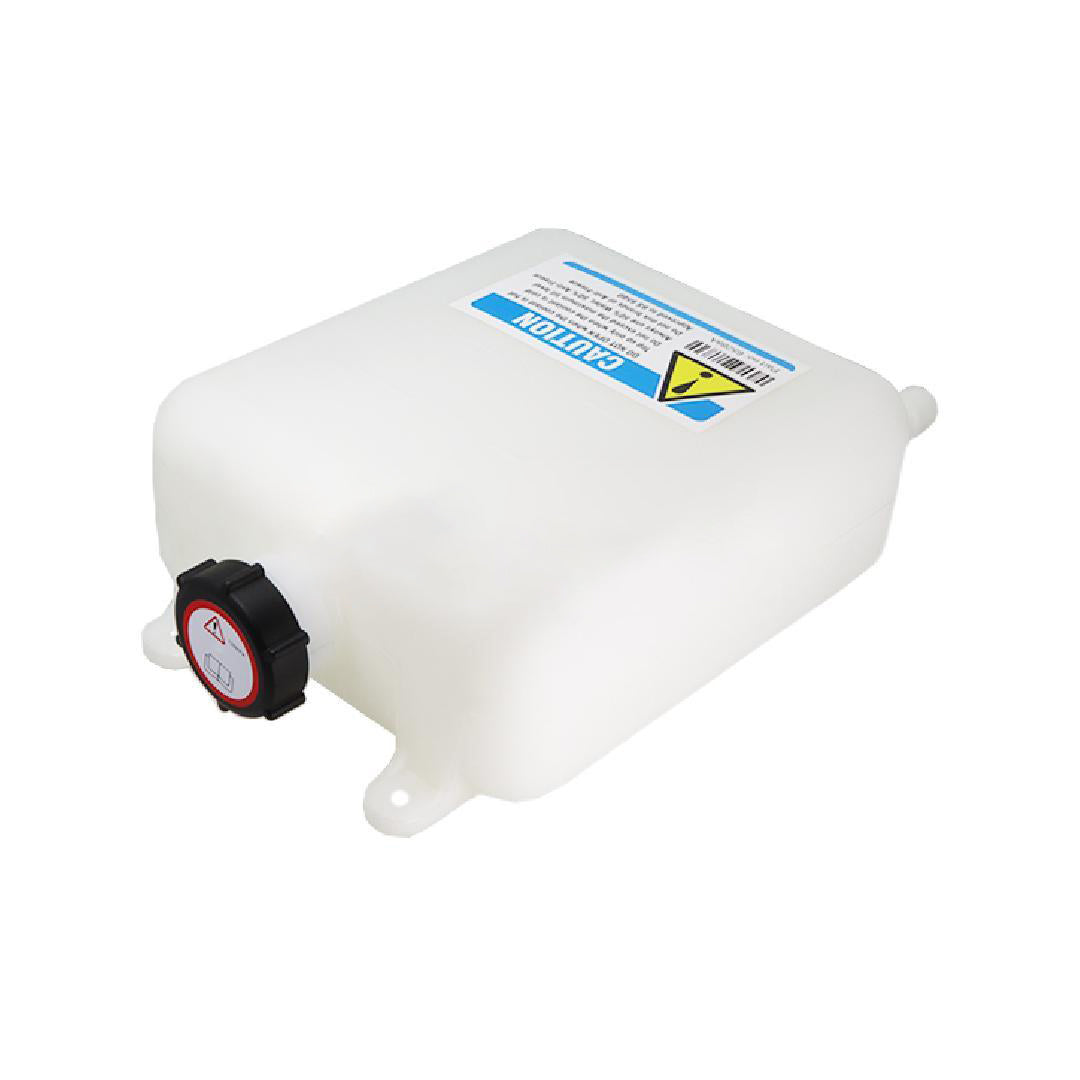

Header Tank 5L 2 Outlets

This high-grade Plastic Header / Expansion Tank will be suitable for all water heater brands including all Eberspacher / Webasto water heater systems (up to 12KW)

• 5 Litre Capacity
• Rugged Construction
• Pressure relieve cap 1.2 bar
• Dimensions - 220mm Length x 250mm width x 100mm depth
• Inlet/Outlet OD = 20mm
• Supplied with a 2 outlet system
• 12 Months Warranty
• You can use a 19mm ID water hose or 22mm Push fittings.
• Min and Max stamp on the tank to ensure correct water levels.
• The fixing holes are the same as other similar brands, so this unit can be retrofitted or used as a replacement.

The header tank inlet ports are designed to work with a 19mm ID water hose, or if you cut down the end of the inlet port, you can use 22mm plumber push fittings for easy installation.

Technical information
1.2 bar Pressure relief on the cap
2.5 bar max operating pressure on the tank
120°C Maximum temperature in the tank
