Rubber Marine Fuel & Oil Hose - 10MM ID
Rubber Marine Fuel & Oil Hose - 10MM ID

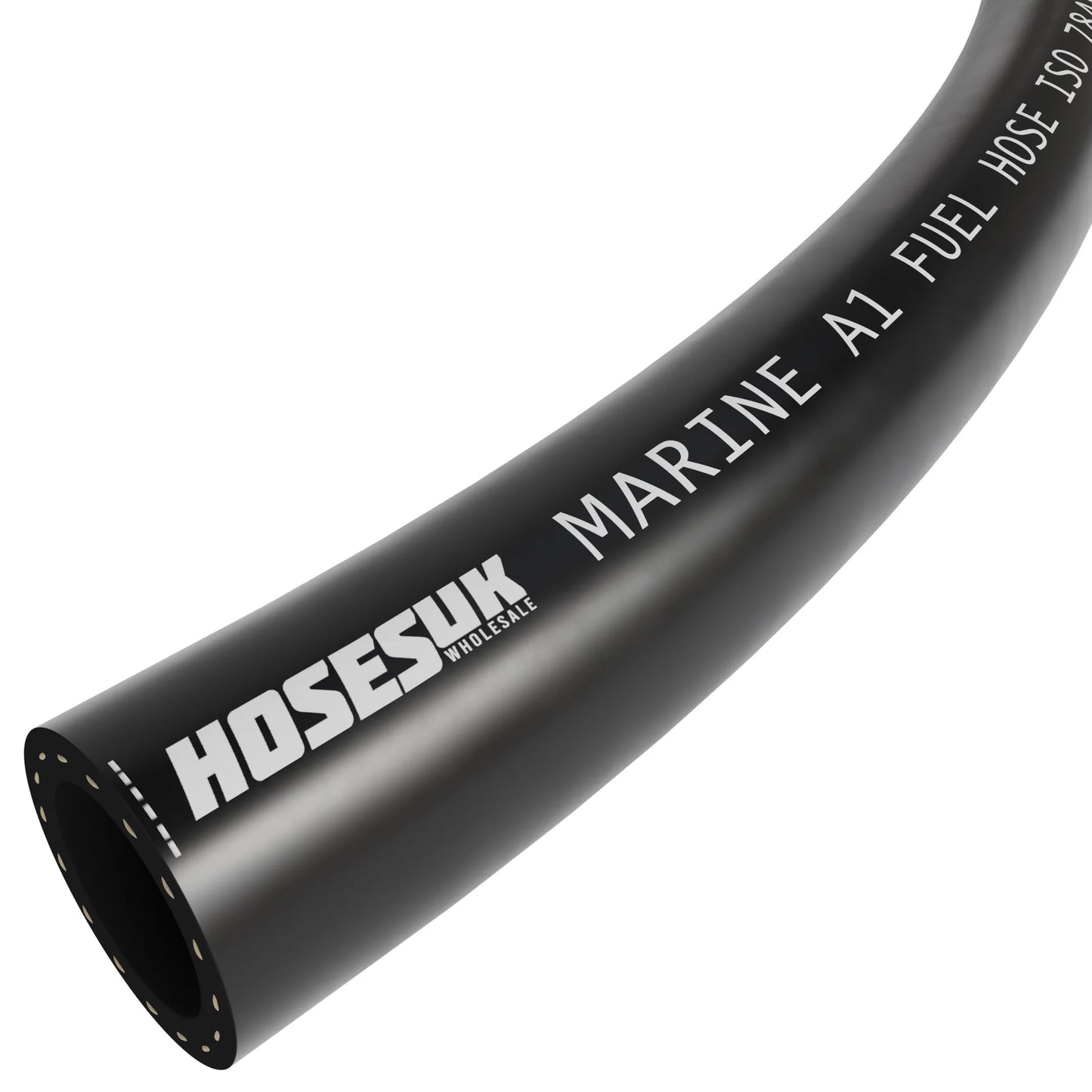

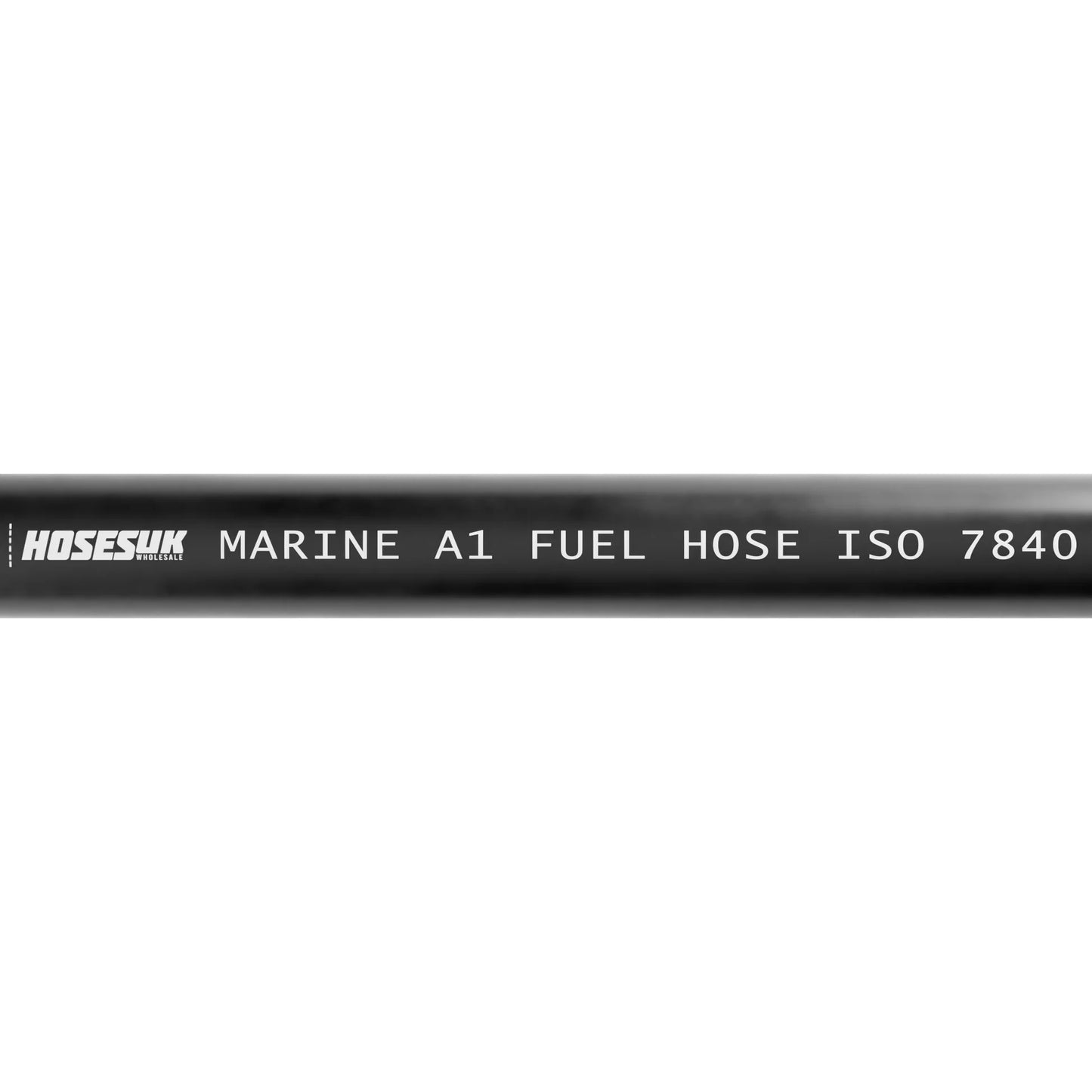

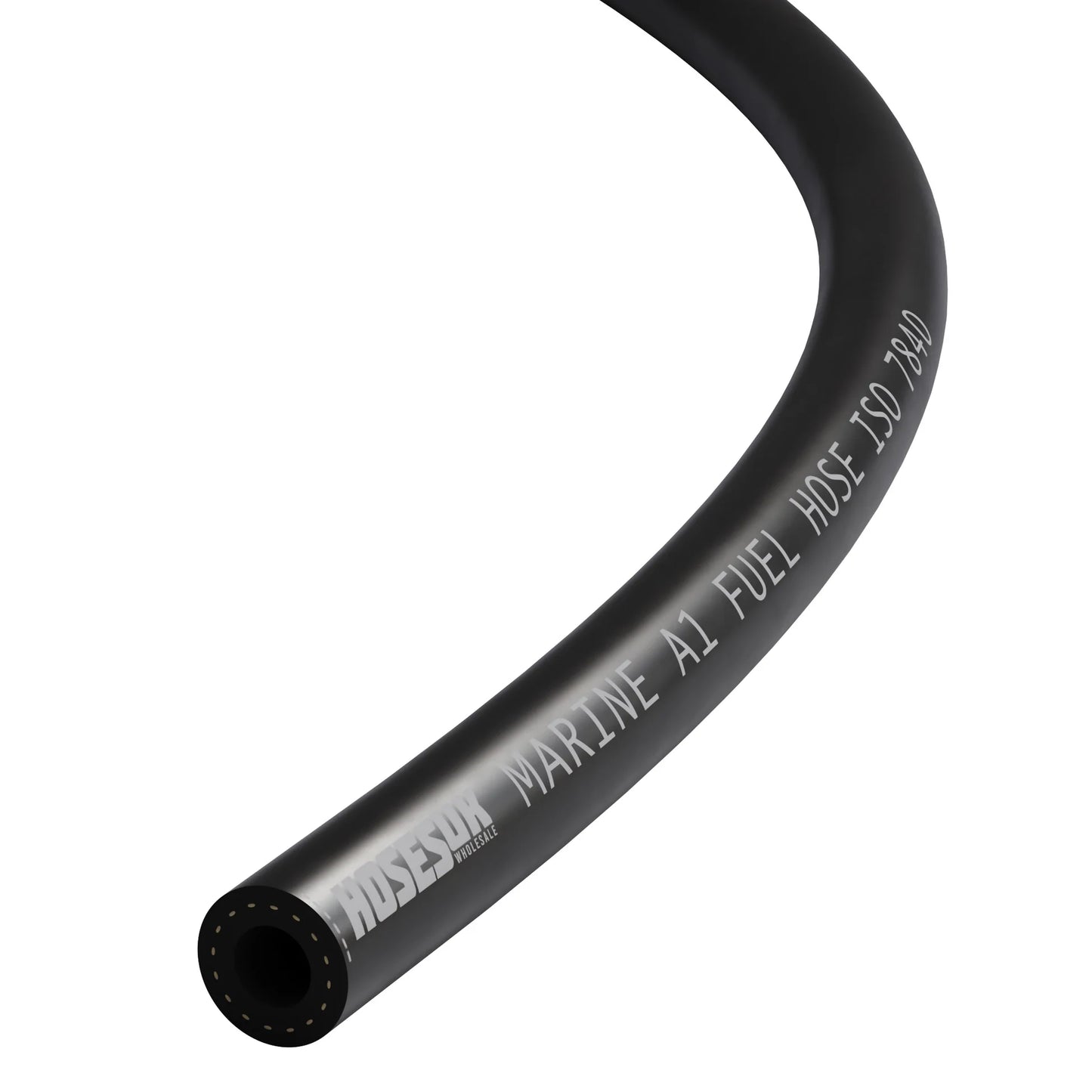

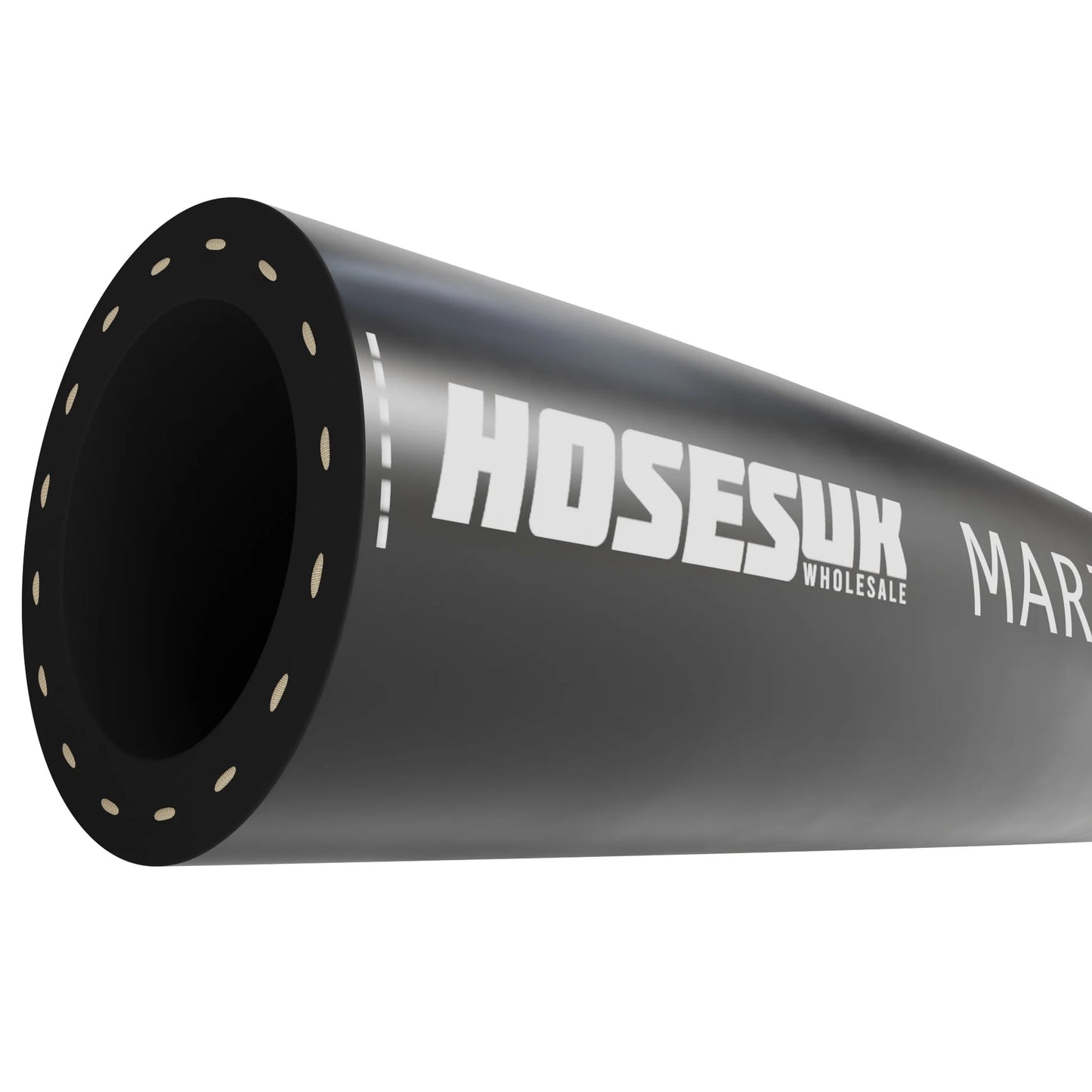

10mm Internal Diameter - Rubber Marine Fuel & Oil Hose A1 is a type of hose specifically designed for use in marine environments. It has an internal diameter of 10mm, making it suitable for transferring fuels and oils in large-sized marine vessels.
This hose is commonly used for transferring gasoline, diesel, and other types of fuel to marine engines and other onboard systems. It can also be used for transferring lubricating oils, transmission fluids, and other types of lubricants. The 10mm internal diameter of this hose allows for a higher flow rate of fuel and oil, making it perfect for large-sized marine vessels.
The Rubber Marine Fuel & Oil Hose A1 is made from a combination of rubber and reinforced fibers, making it highly durable and resistant to high pressures and temperatures associated with marine use. It is also resistant to the chemicals and solvents found in marine fuels and oils, and is reinforced with materials like steel or nylon to increase its strength and flexibility. Additionally, it is equipped with safety features like overpressure valves, which help to prevent dangerous leaks or explosions.
The hose is also resistant to UV rays and ozone, making it suitable for outdoor use. The hose is also suitable for use in cold weather conditions as it is resistant to cracking and hardening.
Overall, the 10mm Internal Diameter - Rubber Marine Fuel & Oil Hose A1 is a reliable and safe option for transferring fuels and oils in marine environments, and its larger size and higher flow rate make it ideal for large-sized marine vessels.
Specifications
Specifications
1Brand: Hoses UK
Application: Oil Diesel & Petrol Marine Fuel Delivery
Temperature Range: -35°C to +100°C
Internal Diameter: 10mm
Internal Diameter Inch: 25/64"
Outside Diameter: 17mm
Outside Diameter: 11/16"
Main Body Length: 10 Metres
Radius: 100mm
Number Of Plys: 1
Max Coil Length: 100m
Wall Thickness: 3.5mm
Surface Finish: Smooth Matte
Inner Layer Material: Nitrile Rubber
Outer Layer Material: Smooth Chloroprene Rubber
Reinforcement: High Tensile Polyester
Conforms To: ISO 7840 Type A1
Colour: Black
Bursting Pressure: 30.0 Bar
Working Pressure: 10.0 Bar
Safety Factor: 3 x Working Pressure
Weight: 0.36 kg/m
