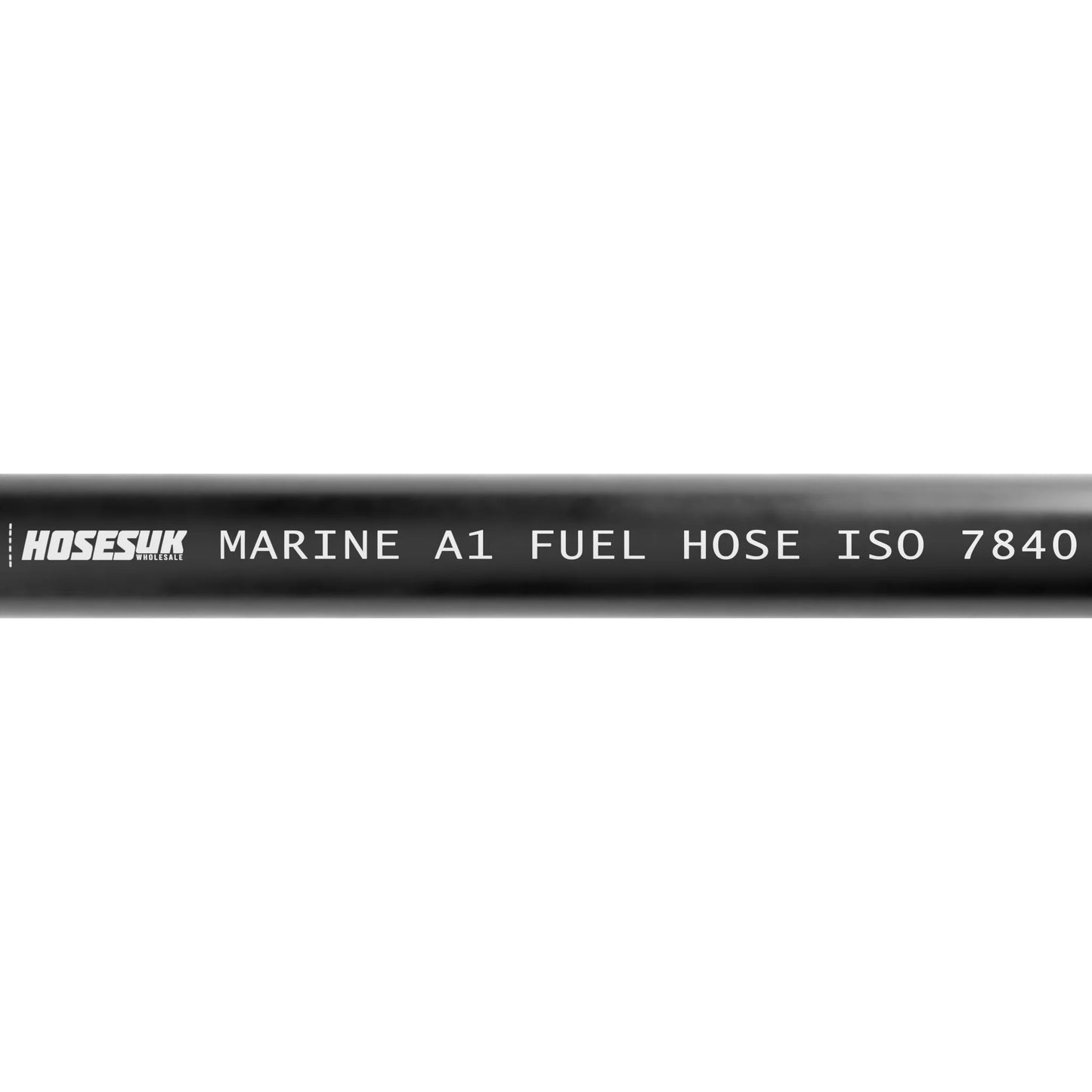

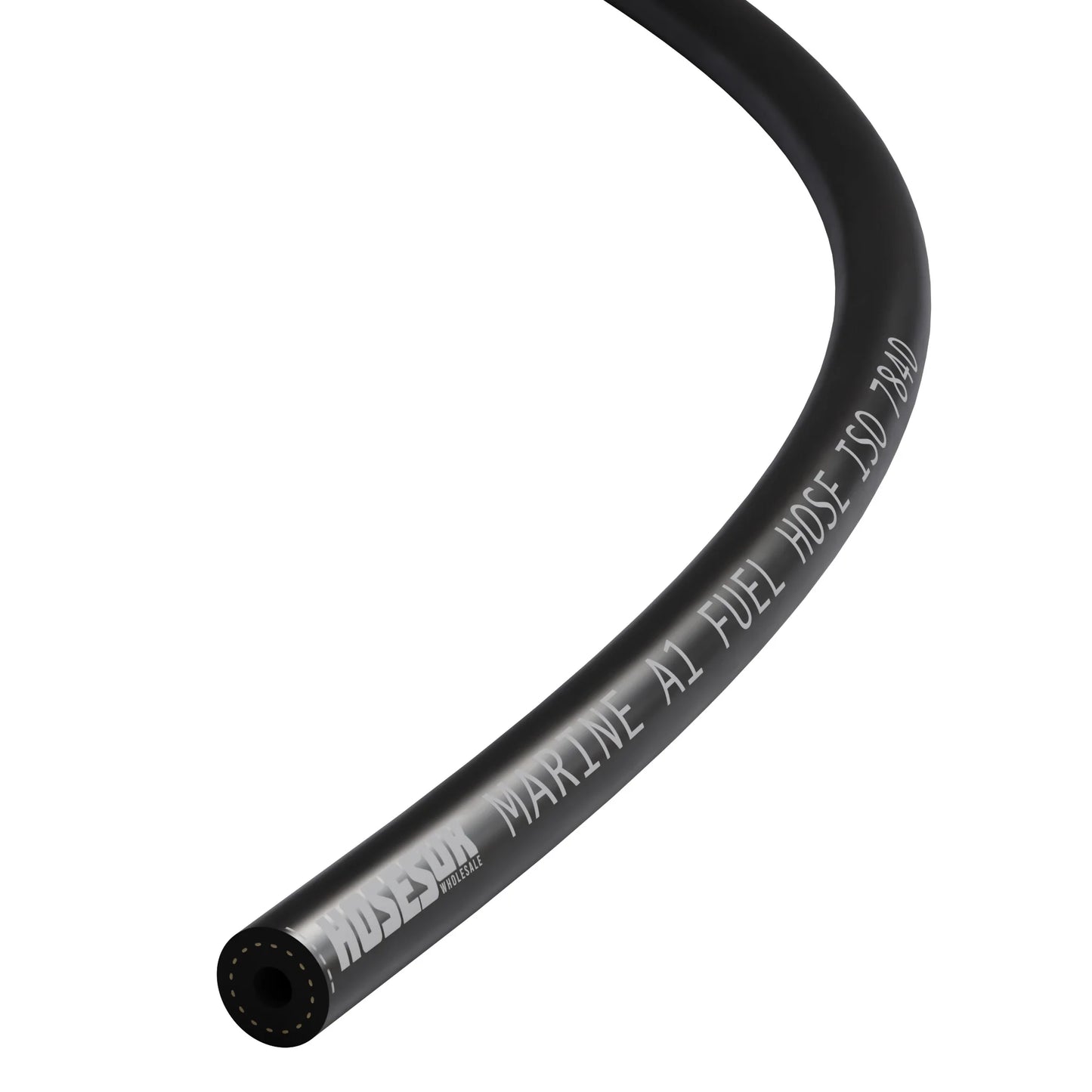

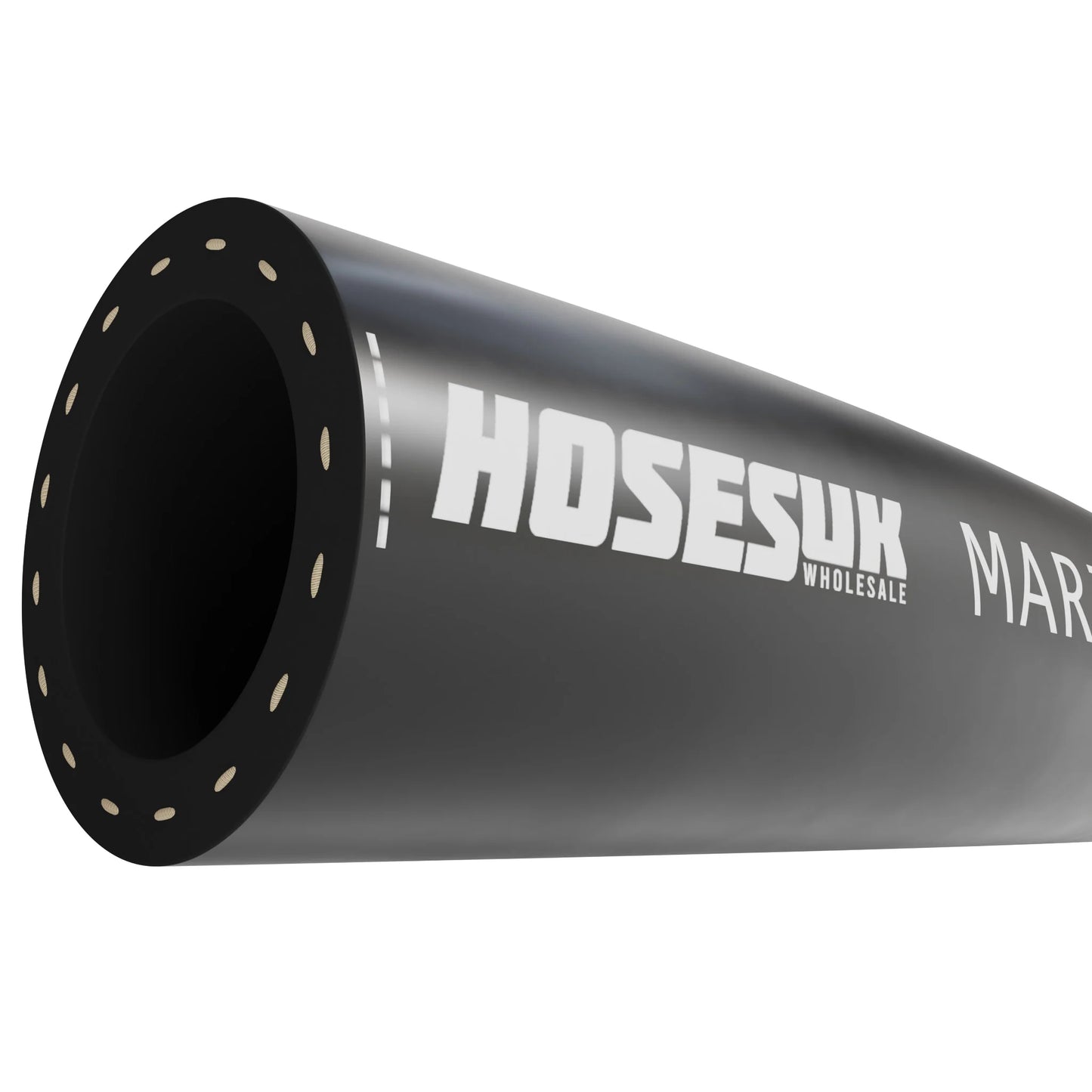

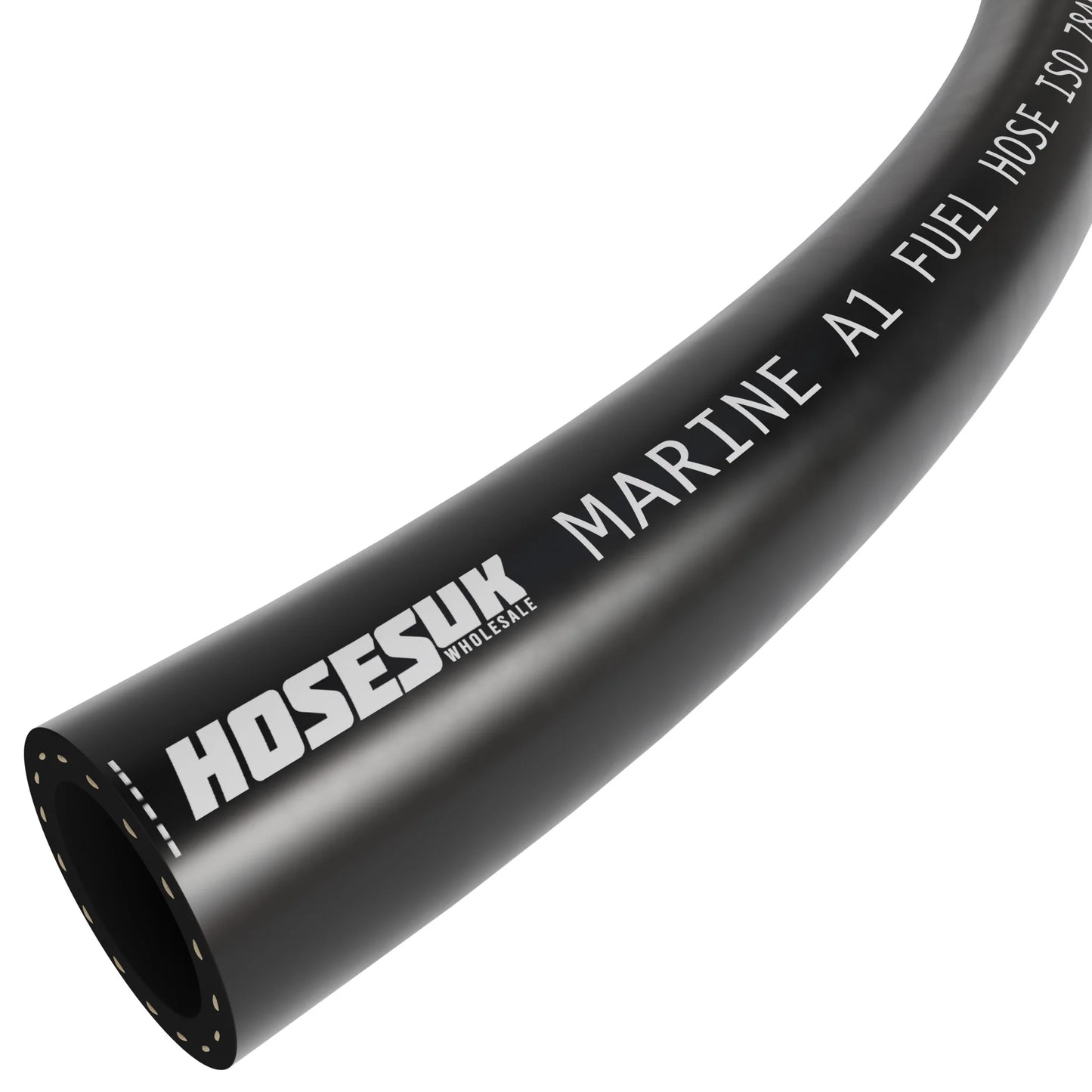

Rubber Marine Fuel & Oil Hose - 5MM ID
Rubber Marine Fuel & Oil Hose - 5MM ID
Couldn't load pickup availability
Marine Fuel Rubber ISO7840 A1 made from resistant black NBR rubber reinforced by synthetic textile. Our marine hoses are designed to be easy to use, with lightweight designs, abrasion resistance, as well as completely crush-proof. All of our marine and wet exhaust hoses are available in many different sizes and lengths.
High tensile polyester fibres are weaved between the layers to provide the hose with reinforcement. The working pressure varies from 5 to 10 bar depending on the size, and is suitable in temperatures up to +100°C.
Specifications
Specifications
Brand: Hoses UK
Application: Oil Diesel & Petrol Marine Fuel Delivery
Temperature Range: -35°C to +100°C
Internal Diameter: 5mm
Internal Diameter Inch: 13/64"
Outside Diameter: 12mm
Outside Diameter: Inch1/2"
Main Body Length: 1 Metre Bend
Radius: 40mm
Number Of Plys: 1
Max Coil Length: 100m
Wall Thickness: 3.5mm
Surface Finish: Smooth Matte
Inner Layer Material: Nitrile Rubber
Outer Layer Material: Smooth Chloroprene Rubber
Reinforcement: High Tensile Polyester
Conforms To: ISO 7840 Type A1
Colour: Black
Bursting Pressure: 30.0 Bar
Working Pressure: 10.0 Bar
Safety Factor: 3 x Working Pressure
Weight: 0.15 kg/m
