Rubber Marine Fuel & Oil Hose - 8MM ID
Rubber Marine Fuel & Oil Hose - 8MM ID

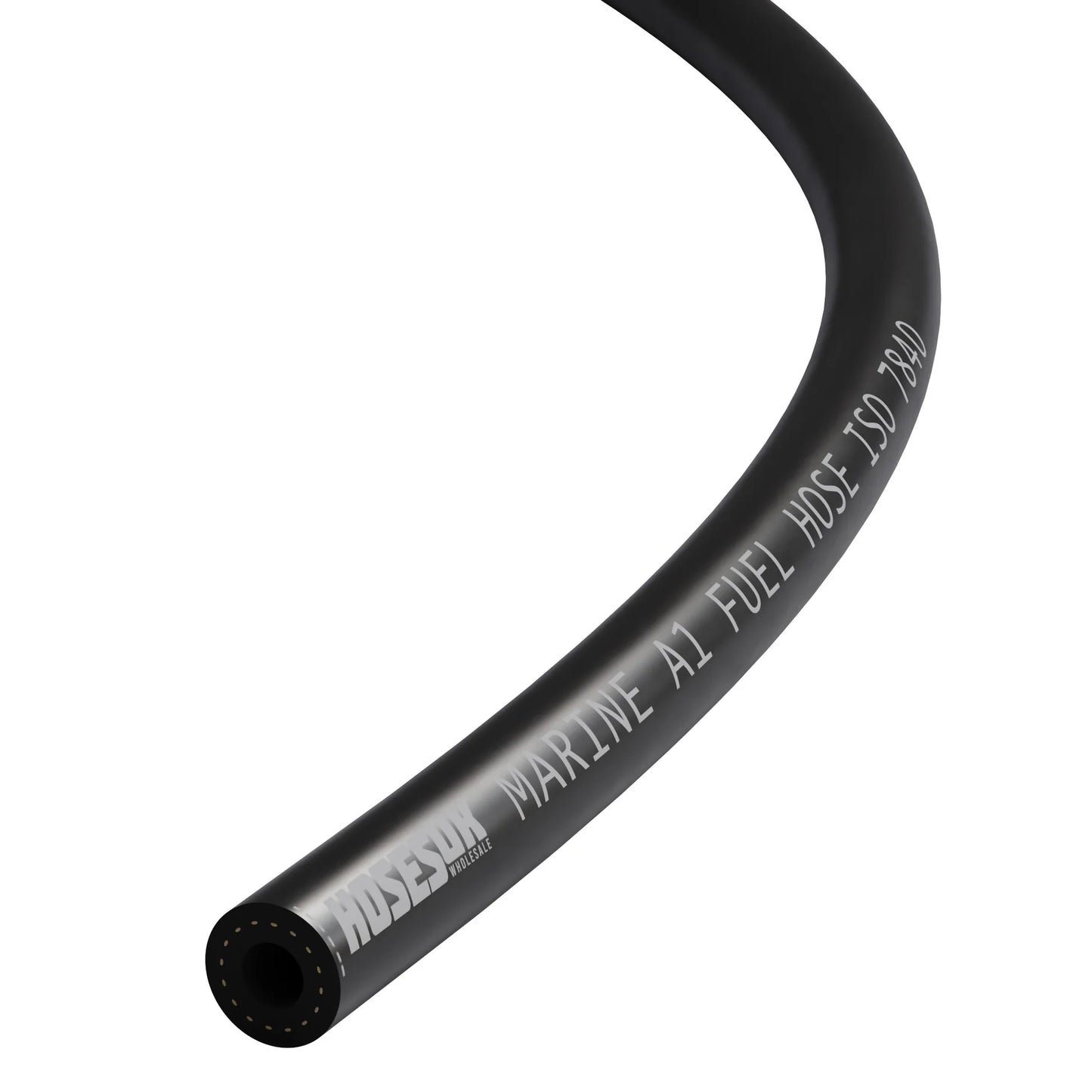

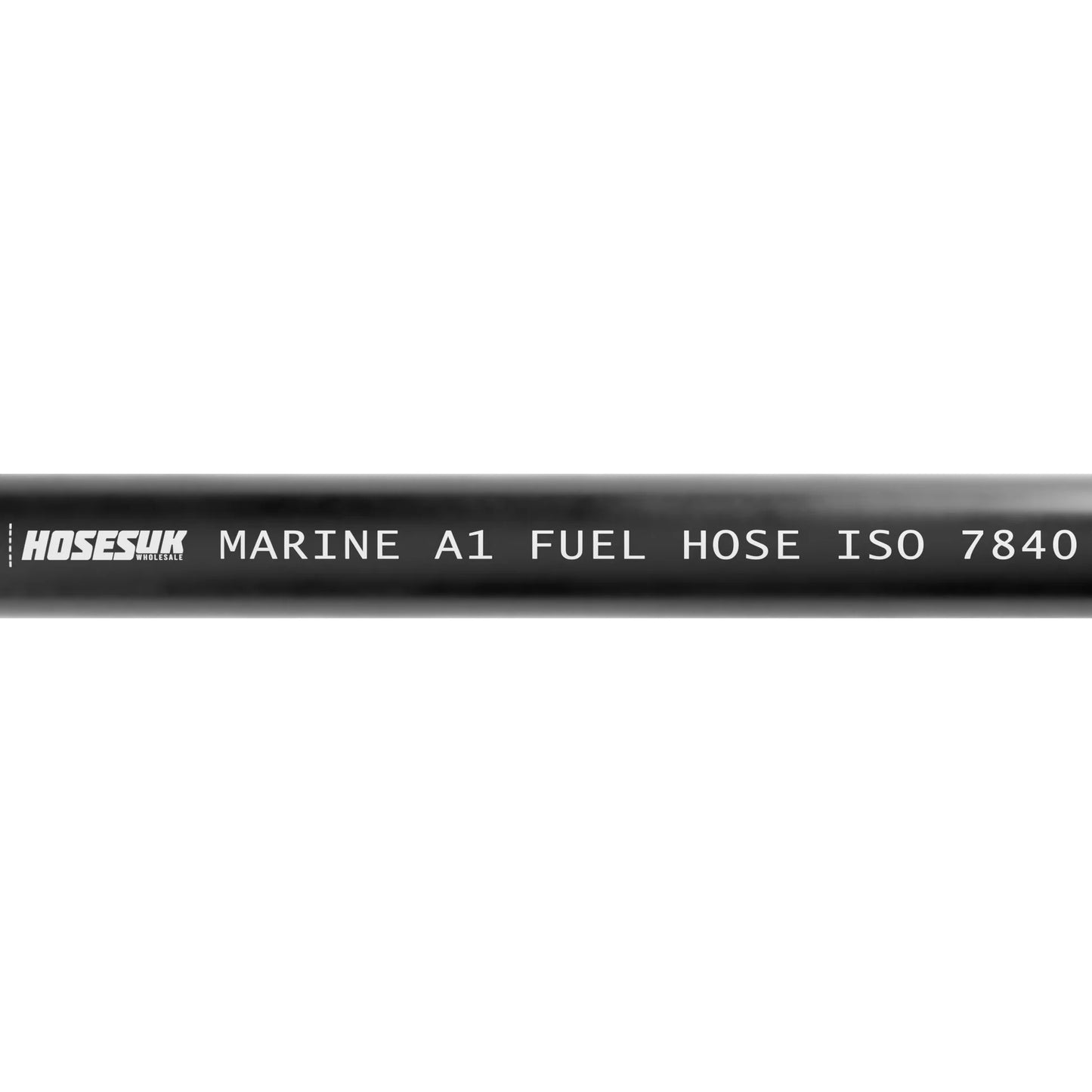

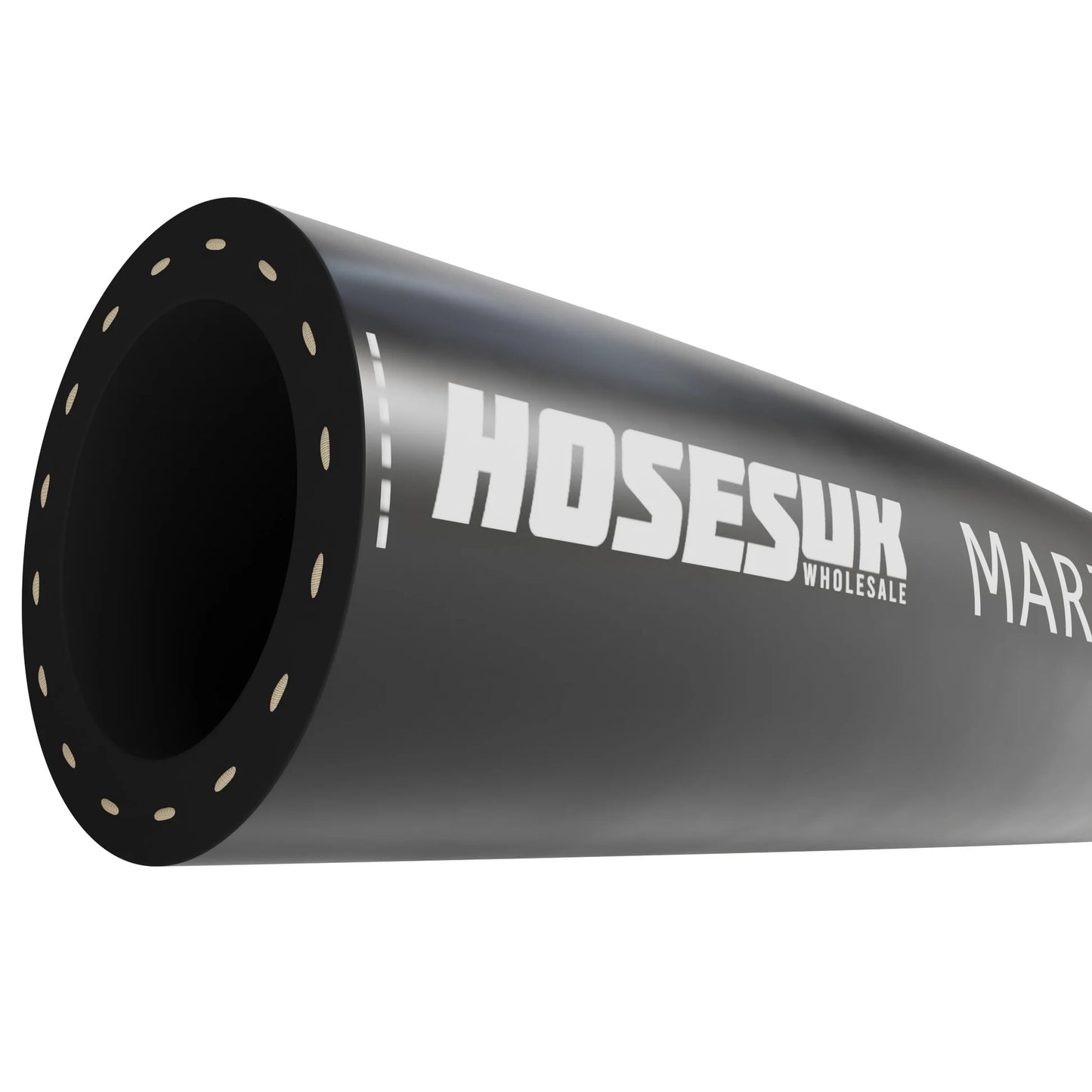

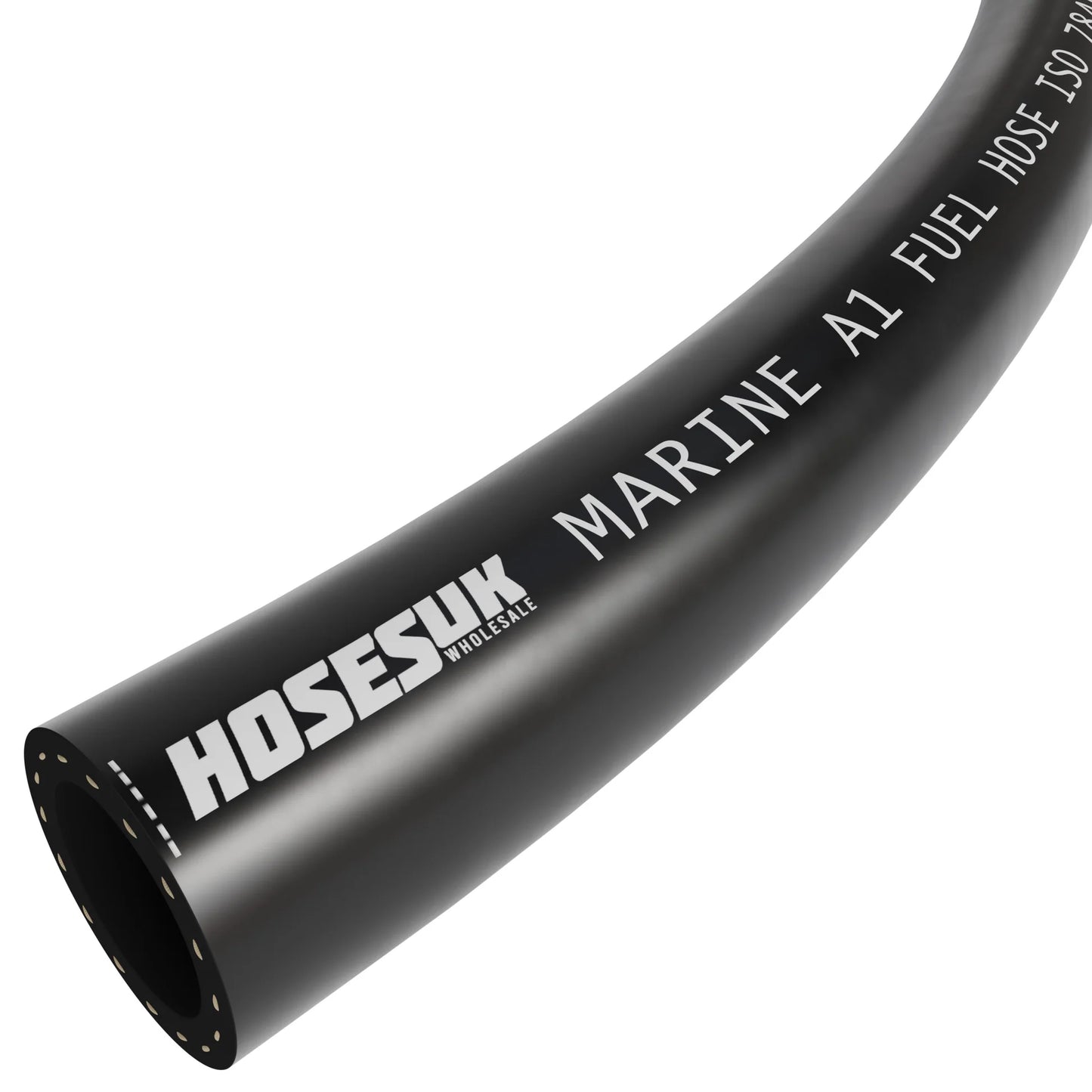

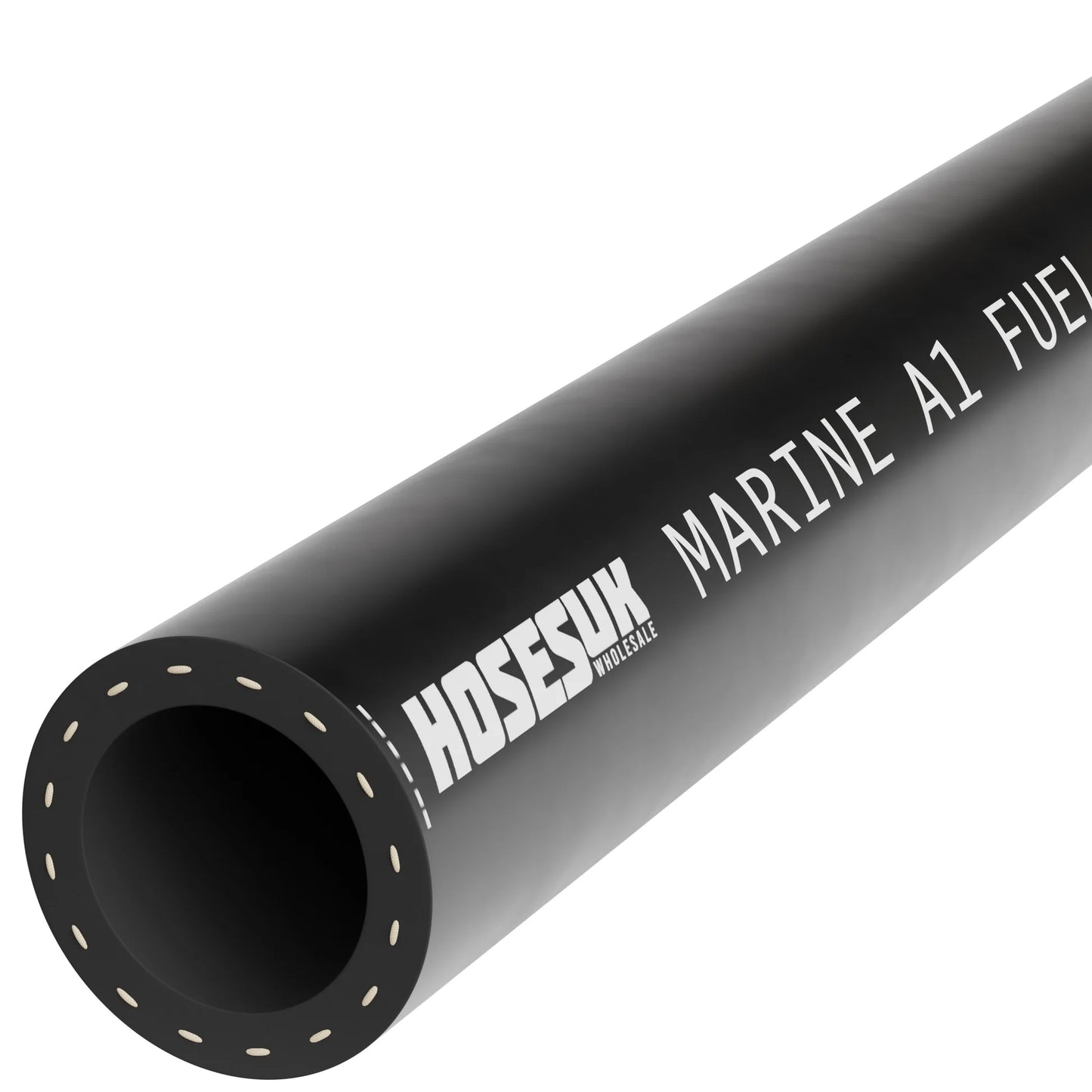

8mm Rubber Marine Fuel & Oil Pipe A1 is a type of hose specifically designed for use in marine environments. It has an internal diameter of 8mm, making it suitable for transferring fuels and oils in medium to large-sized marine vessels.
This pipe is commonly used for transferring gasoline, diesel, and other types of fuel to marine engines and other onboard systems. It can also be used for transferring lubricating oils, transmission fluids, and other types of lubricants. The 8mm internal diameter of this pipe allows for a higher flow rate of fuel and oil, making it perfect for medium to large-sized marine vessels.
The Rubber Marine Fuel & Oil Pipe A1 is made from a combination of rubber and reinforced fibers, making it highly durable and resistant to high pressures and temperatures associated with marine use. It is also resistant to the chemicals and solvents found in marine fuels and oils, and is reinforced with materials like steel or nylon to increase its strength and flexibility. Additionally, it is equipped with safety features like overpressure valves, which help to prevent dangerous leaks or explosions.
The pipe is also resistant to UV rays and ozone, making it suitable for outdoor use. The pipe is also suitable for use in cold weather conditions as it is resistant to cracking and hardening.
Marine Fuel Rubber ISO7840 A1 made from resistant black NBR rubber reinforced by synthetic textile. Our marine hoses are designed to be easy to use, with lightweight designs, abrasion resistance, as well as completely crush-proof. All of our marine and wet exhaust hoses are available in many different sizes and lengths.
High tensile polyester fibres are weaved between the layers to provide the hose with reinforcement. The working pressure varies from 5 to 10 bar depending on the size, and is suitable in temperatures up to +100°C.
Specifications
Specifications
9Brand: Hoses UK
Application: Oil Diesel & Petrol Marine Fuel Delivery
Temperature Range: -35°C to +100°C
Internal Diameter: 8mm
Internal Diameter Inch: 5/16"
Outside Diameter: 15mm
Outside Diameter: 9/16"
Main Body Length: 10 Metres
Radius: 80mm
Number Of Plys: 1
Max Coil Length: 100m
Wall Thickness: 3.5mm
Surface Finish: Smooth Matte
Inner Layer Material: Nitrile Rubber
Outer Layer Material: Smooth Chloroprene Rubber
Reinforcement: High Tensile Polyester
Conforms To: ISO 7840 Type A1
Colour: Black
Bursting Pressure: 30.0 Bar
Working Pressure: 10.0 Bar
Safety Factor: 3 x Working Pressure
Weight: 0.21 kg/m
