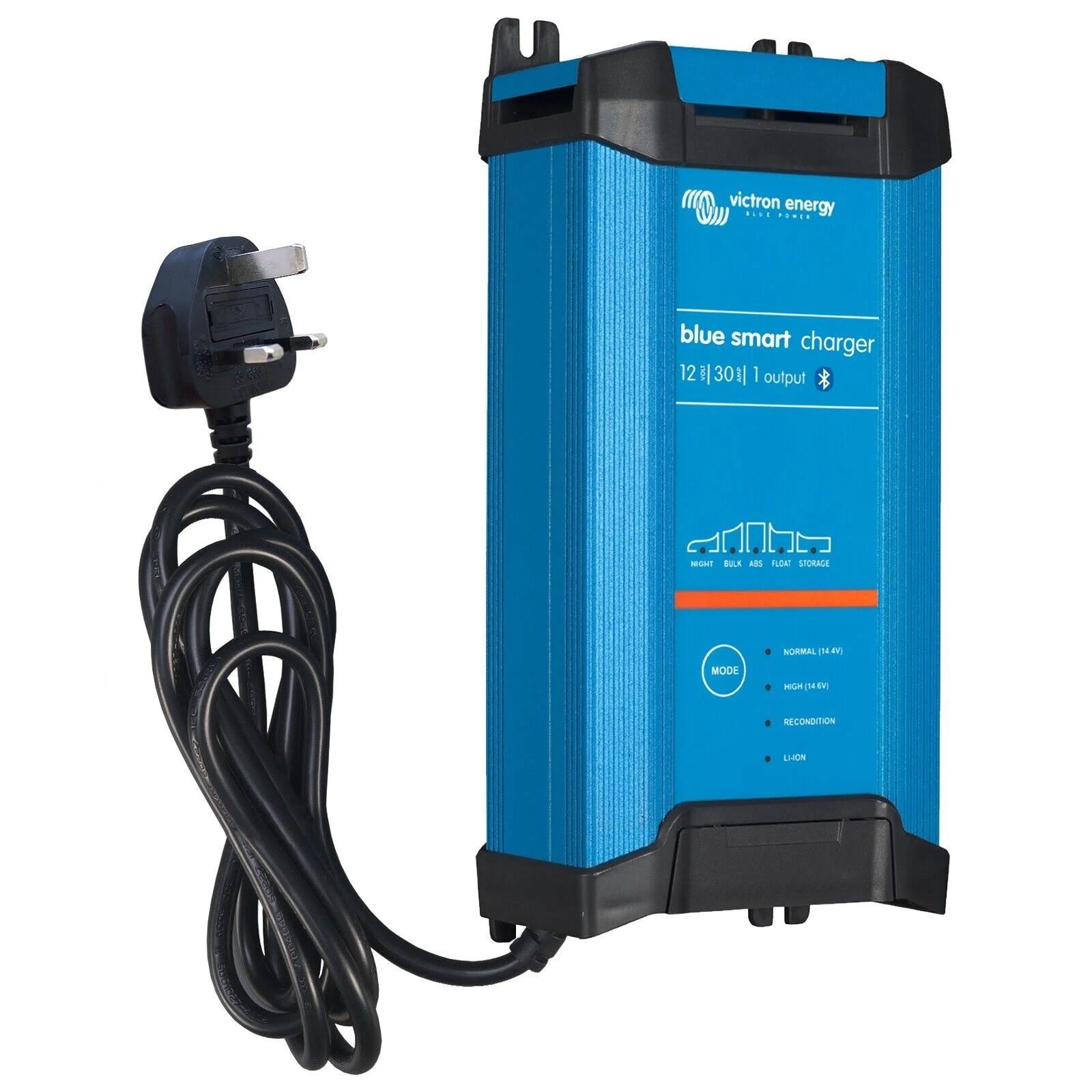

Victron Blue Smart IP22 Bluetooth Battery Charger - 12V 30A- 1 output
Victron Blue Smart IP22 Bluetooth Battery Charger - 12V 30A- 1 output
The 30A Blue Smart IP22 6-stage battery charger with built-in Bluetooth is a professional quality charger featuring microprocessor-controlled, adaptive charging technology.
Specifications
Specifications
Specifications:
Recommended battery capacity: between 150 - 250ah
Input voltage rating: 180 - 265V AC
Output voltage (absorption/float/store): 14.2-14.7/13.5-13.8/13.2-13.5 VDC
Max. charge current: 30A
Low current mode: 15A
Min. Battery Capacity: 75Ah
Inputs: One
'No load' power consumption: 0.5w
Efficiency: 93%
Mains connection: 3-pin UK plug (BS1363) on 1.5m cable
Battery connection: Ring terminals on 1.5m cables - included.
Protection rating: IP67 (waterproof with resin-encapsulated electronics)
Operating temperature: -40ºC to +60ºC
Cooling method: Fan assisted
Product dimensions: 235(L) x 108(W) x 65(H) mm
Battery connection: Screw clamp terminals for max. 16mm² cable.
Features:
Adaptive charging algorithm - Test - Bulk - Absorption - Recondition - Float - Storage
Quiet fan function
Automatic power supply function
Bluetooth connectivity
Night and Low function, reduction to 50% nominal output
Overtemperature protection
Low power mode to charge smaller batteries- Charges all battery types, Li-ion, LiFePO4, Wet, Gel, AGM
Set-up and configure, and monitoring by Bluetooth connection- Can act as a power supply unit (PSU) when no battery is connected
Note: No output cables or connectors are included.
Warranty and Safety Features
Warranty and Safety Features
5 year manufacturers warranty
