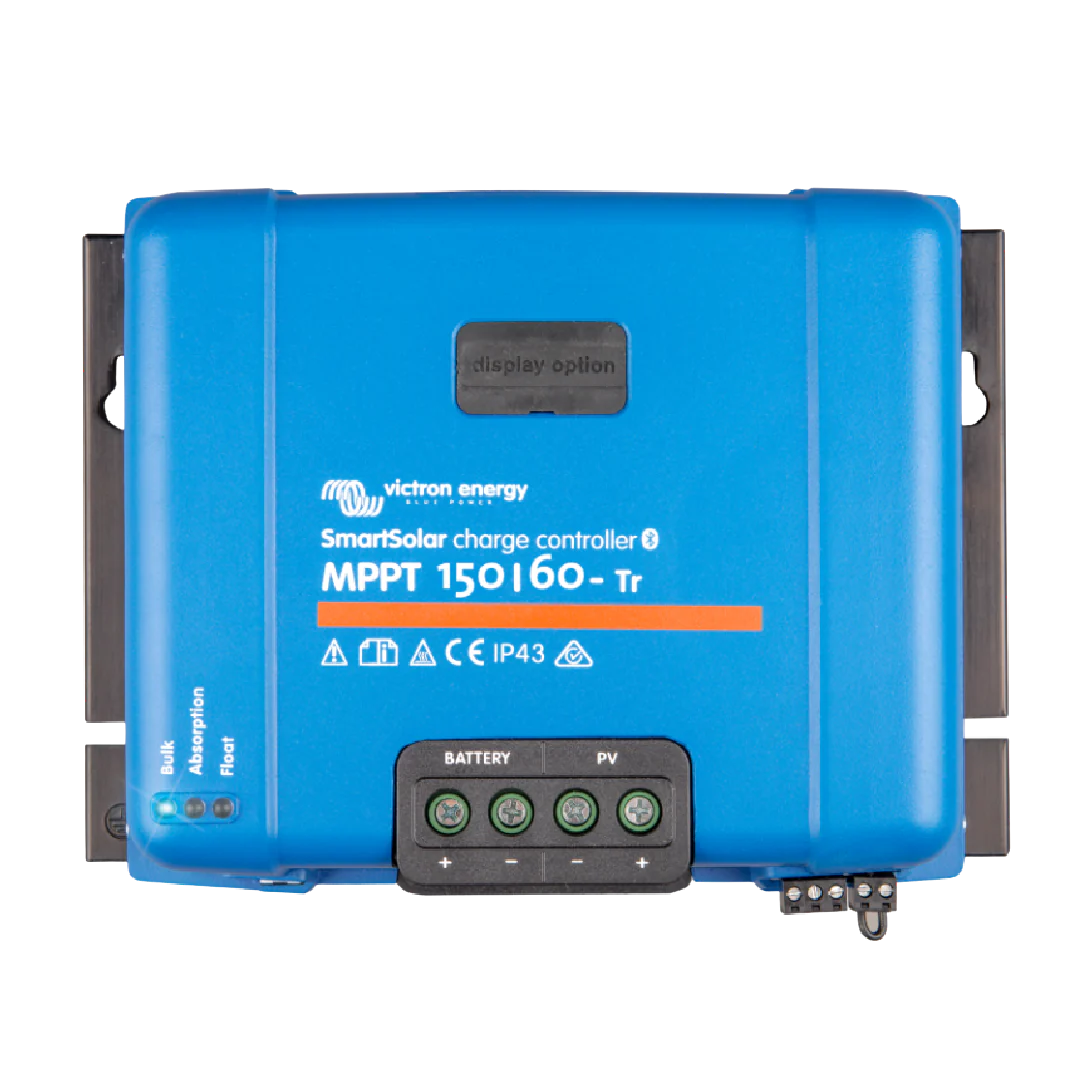

Victron Energy SmartSolar MPPT- 150/60-Tr

See downloads for detailed specification

• MPPT Technology: Constantly monitors the voltage and current output of solar panels. Maximizes power extraction, especially in changing light conditions.
  Highly efficient compared to PWM charge controllers.

• Intelligent Charging: Achieves a full charge quickly and intelligently for optimal battery health. Extends battery life by implementing smart charging algorithms.

• Maximum Input Parameters: Maximum input voltage: 150V. Maximum input current: 60A.

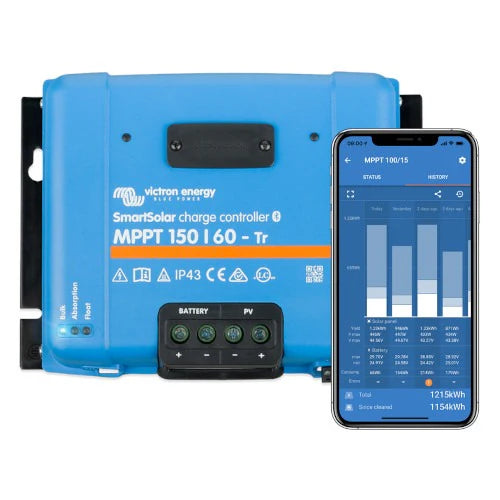

  Smart Functionality: Equipped with Bluetooth for wireless monitoring through the VictronConnect App. Enables remote monitoring of solar charge performance via smartphones (Android and iOS).

• Load Output and BatteryLife Feature: Intelligent load output prevents battery damage by disconnecting the load during low battery conditions. Configurable voltage settings for load disconnection to prevent excessive battery drain.
  BatteryLife feature attempts a 100% recharge daily, adjusting disconnect voltage during poor weather to maintain battery health.

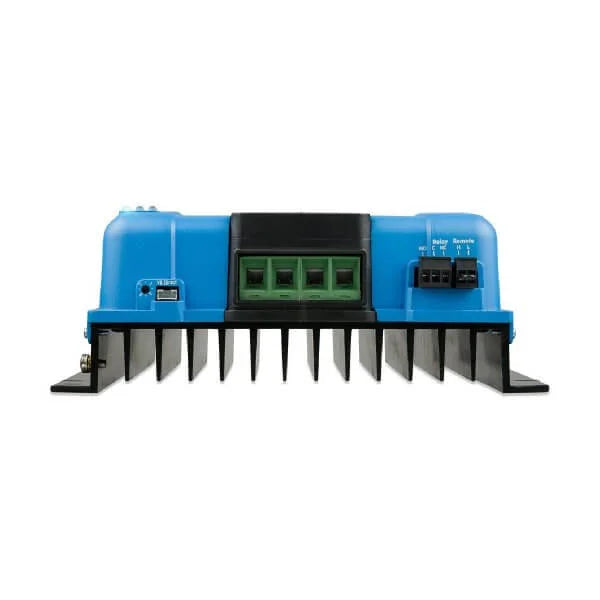

• Tr Screw Terminal Connection Points: Features Tr screw terminal connection points for secure input and output wire connections. Requires stripping the insulation from the wires for attachment to the screwed terminal.

• Versatile Applications: Suitable for a wide range of off-grid applications, including campervans, boats, and tiny houses. Efficiently operates in partially clouded skies and changing light intensity.

• Efficiency and Performance: Offers superior efficiency compared to traditional PWM charge controllers. Maximizes power utilization from solar panels.

Victron offer a superb 5 year warranty on their products. You can find out more about their warranty here.

• Victron Spec Sheet

• Victron Manual Sheet
